Lighting / Consumer LEDs

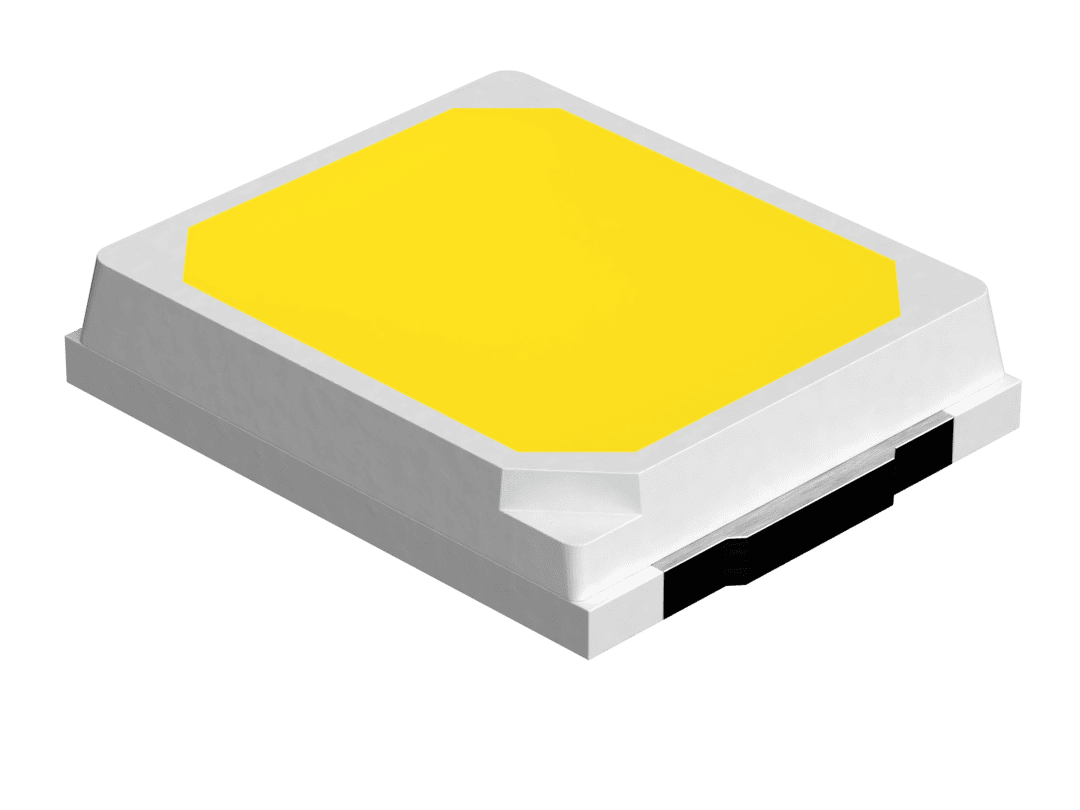

PLCC

Adopting a miniaturized and compact structural design, it delivers high luminous efficacy within limited space while featuring a wide beam angle, making it ideal for lighting applications that require uniform illumination and high configuration flexibility.

EMC

Featuring high-performance EMC packaging, it is suitable for indoor lighting, industrial lighting, and horticultural lighting across diverse environments. The products offer excellent optoelectronic performance and high reliability, with standardized package dimensions that enable direct replacement within the same package class. They are particularly well suited for outdoor professional lighting, high-bay lighting, street lighting, area lighting, and floodlights, combining high energy efficiency with compact design advantages.

Ceramic

Edison Opto’s ceramic lighting products cover two medium-to-high power package sizes, Federal 3535 and Federal 5050, providing customers with flexible product options. All products utilize ceramic substrates combined with thermo-electric separation design, maintaining outstanding thermal conductivity and high luminous efficacy even under high-power operating conditions.

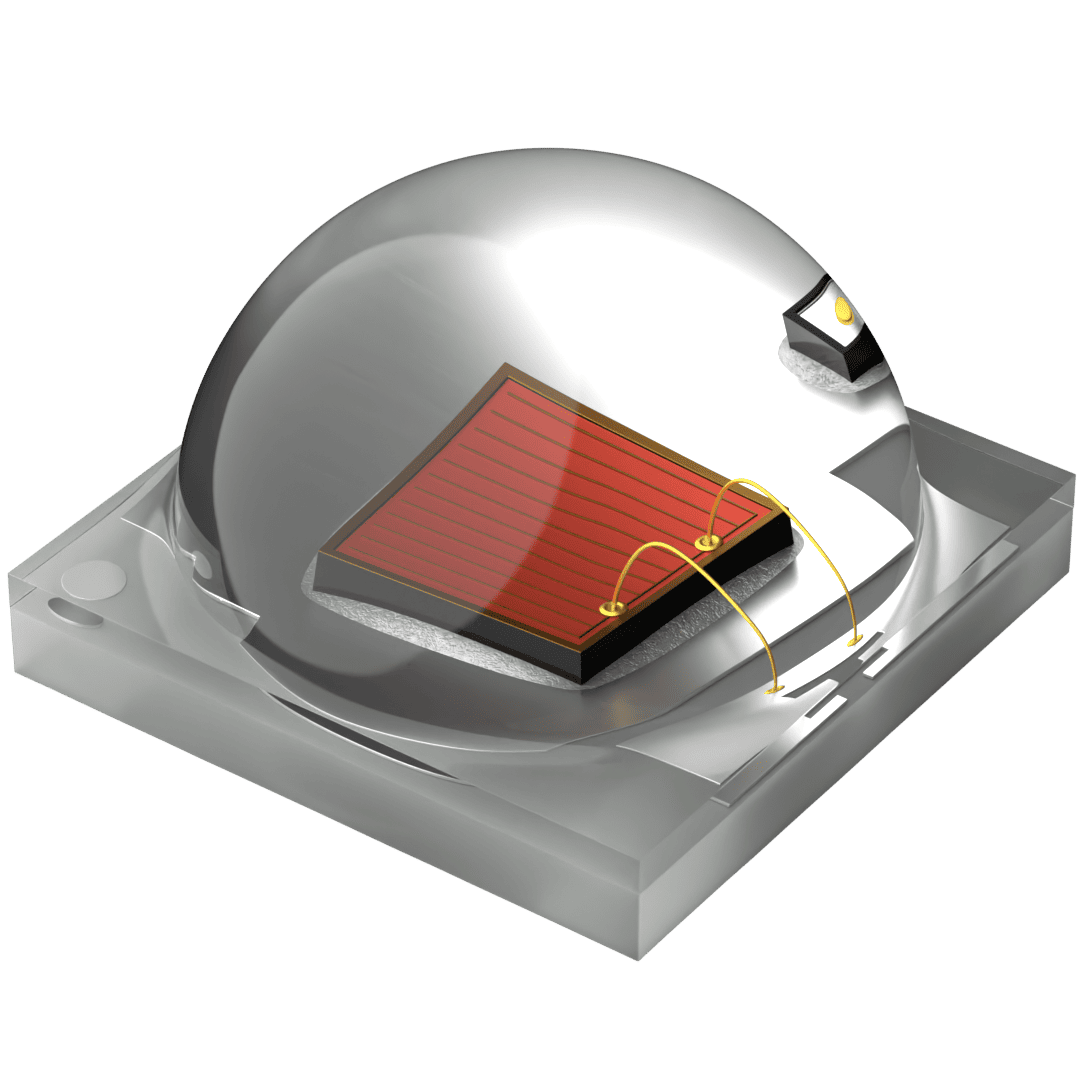

Federal 3535 is suitable for a wide range of applications, including general lighting, indoor and commercial lighting, industrial lighting, horticultural lighting, entertainment lighting, medical lighting, stage lighting, architectural lighting, warning lights, and work lights, offering comprehensive full-spectrum solutions. Its brightness is approximately 5–10% higher than competing products. By adopting a ceramic substrate and flip-chip package design, thermal resistance is reduced by approximately 40–70% compared to EMC lead frames, with thermal conduction efficiency improved by about five times. It delivers stable high brightness within a 3–5 W power range, achieves a product lifetime of up to 50,000 hours, and further enhances brightness by approximately 5% through an enlarged lens design that increases light extraction area.

Federal 5050 is Edison’s high-power ceramic LED product series, specifically designed for entertainment lighting and architectural lighting applications, including illumination projects, stage lighting, and film and television lighting. It supports high current, high illuminance, and multi-color application requirements. Within the same package size, it offers multiple power options ranging from 20 W to 40 W, providing high design flexibility to meet diverse luminaire requirements.

Lens dome series: high-brightness solution, maximum power 20 W (Max. IF: 1.5 A)
Flat series: high-illuminance solution, maximum power 30 W (Max. IF: 2.2 A)
Glass series: high-power solution, maximum power 40 W (Max. IF: 2.5 A)

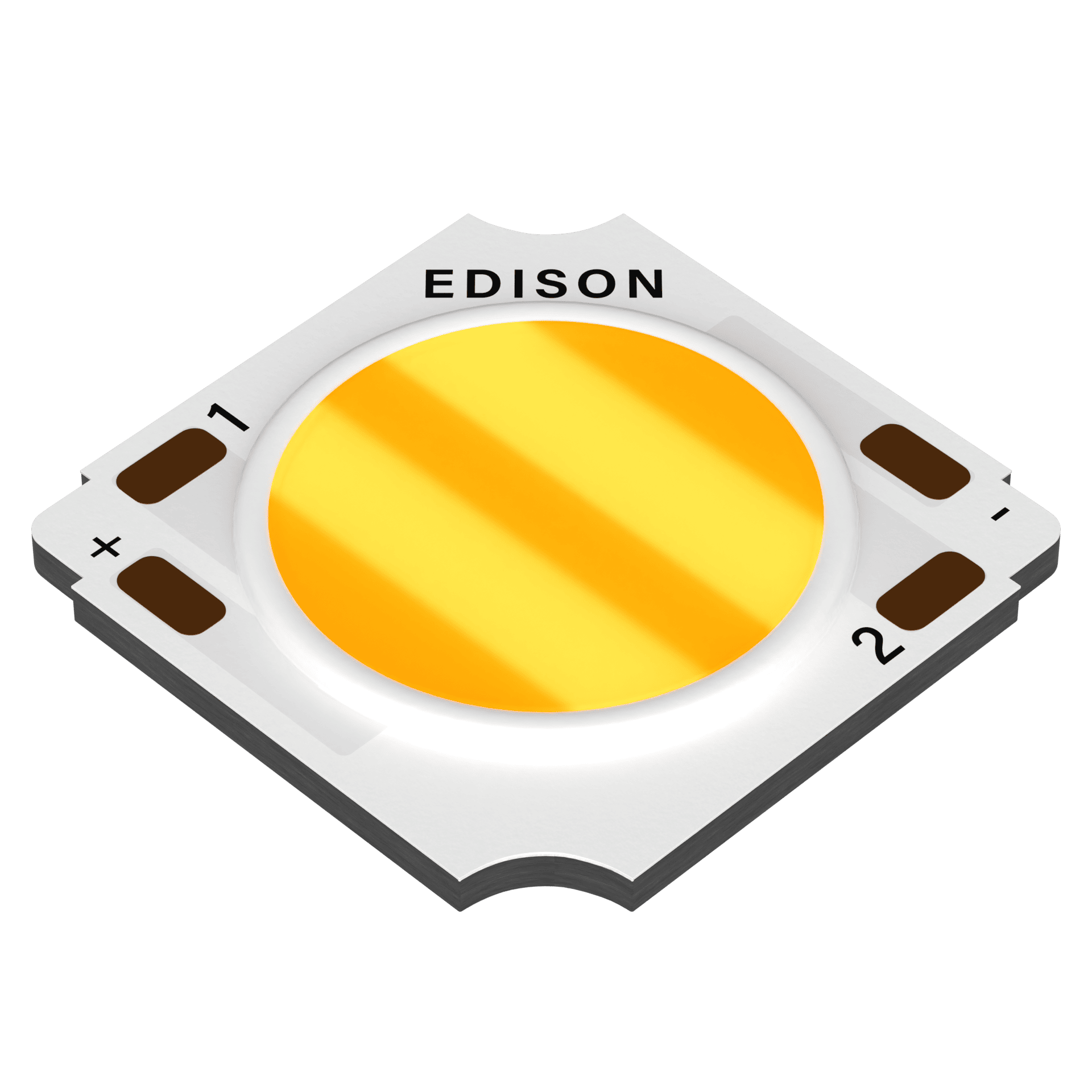

COB

Delivering high cost-performance and stable quality, the products are supplied with warm white light in 2-step and 3-step SDC binning to ensure color temperature consistency and superior light output quality. The design emphasizes high reliability, making it suitable for lighting applications that demand both high light quality and cost efficiency.

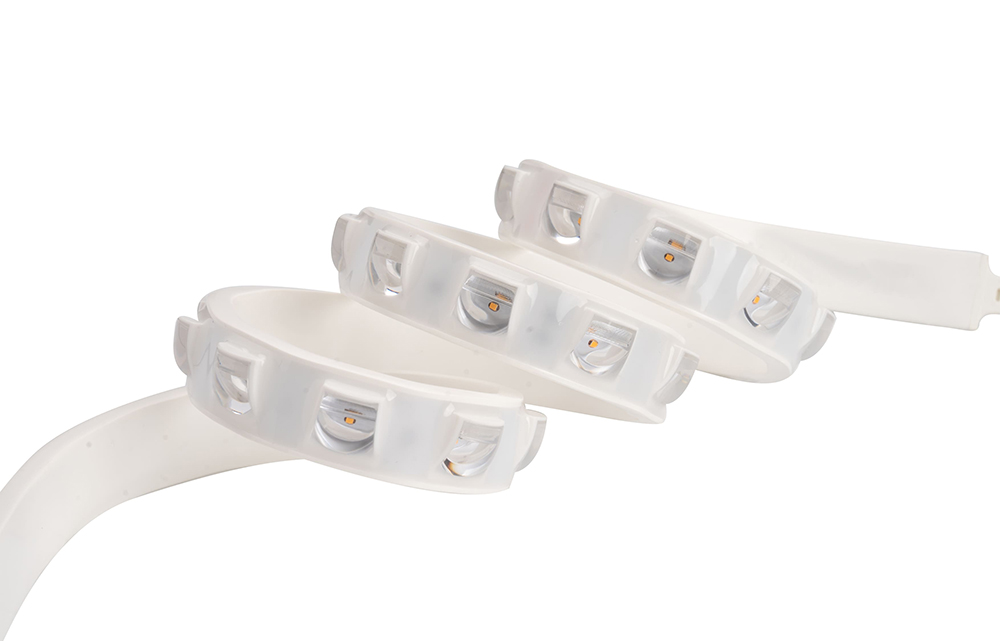

Strip

Edison Opto provides high-quality light strips that are flexible, freely cuttable, and capable of continuous, uniform illumination. With waterproof ratings ranging from IP20 to IP68, they are suitable for indoor, outdoor, and pool applications. These light strip products comply with ESG sustainability requirements, achieving luminous efficacy of up to 220 lm/W or higher. Full-spectrum light strip options with human-centric, eye-friendly design are also available to meet the needs of health lighting and visual comfort across various environments. Edison focuses on the development and manufacturing of high-end customized light strips, delivering stable and competitive solutions for a wide range of lighting projects.

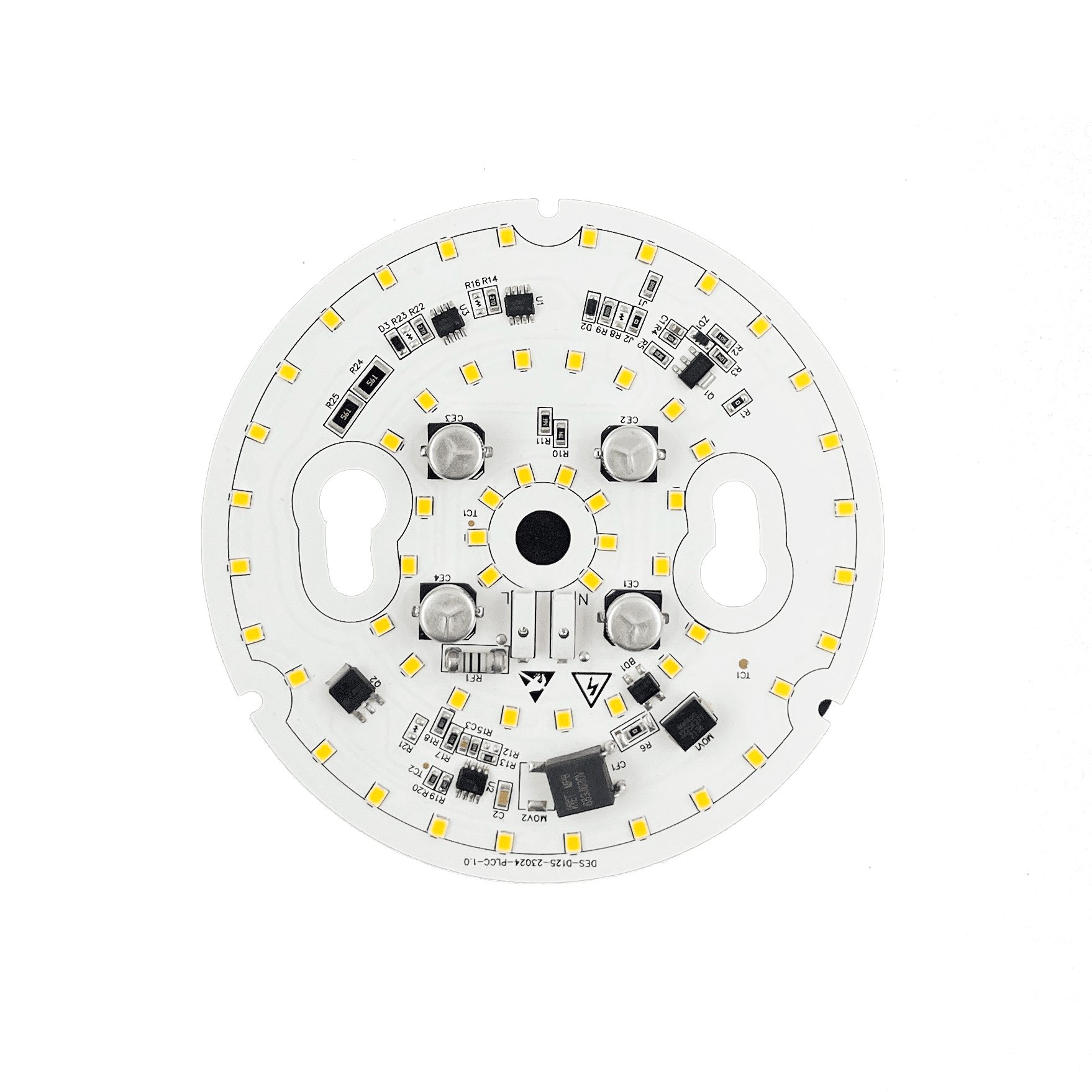

Modules

The AC and DC module series can flexibly support various luminaire application requirements, meeting different customer design and functional configurations. Modules can be integrated with multiple control solutions as required and paired with Edison LED light sources to achieve smart control as well as comfortable and healthy lighting experiences. Through patented circuit design, the modules deliver high-efficiency output and high-voltage protection, offering long service life and stable performance while fully supporting the application needs of diverse lighting projects.
