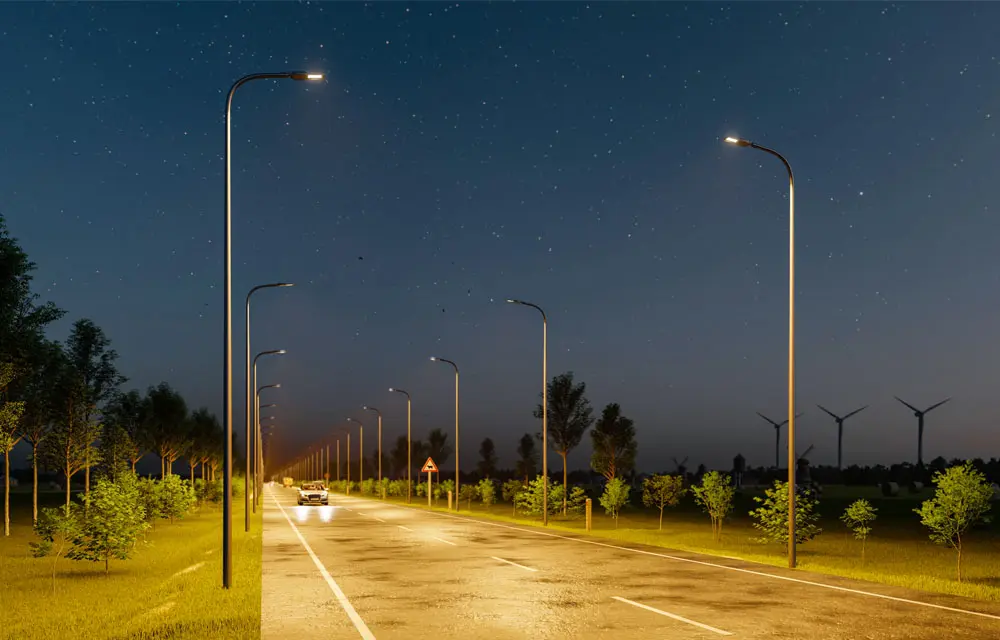

Street Lights

The street light series includes multiple models and supports interchangeable light distributions, smart dimming, and NEMA / Zhaga control interfaces. With high-efficiency LEDs and optimized thermal design, it delivers up to 200 lm/W, along with IP66 and IK09/IK10 ratings for durability and easy maintenance across various roadway applications.

Floodlight

The floodlight series provides multiple power options and beam angles for building façade lighting, sports arenas, ports, airports, and other large-area applications. It features a robust structure, modular configuration, replaceable optics, and smart control compatibility, achieving up to 180 lm/W for both performance and energy efficiency.

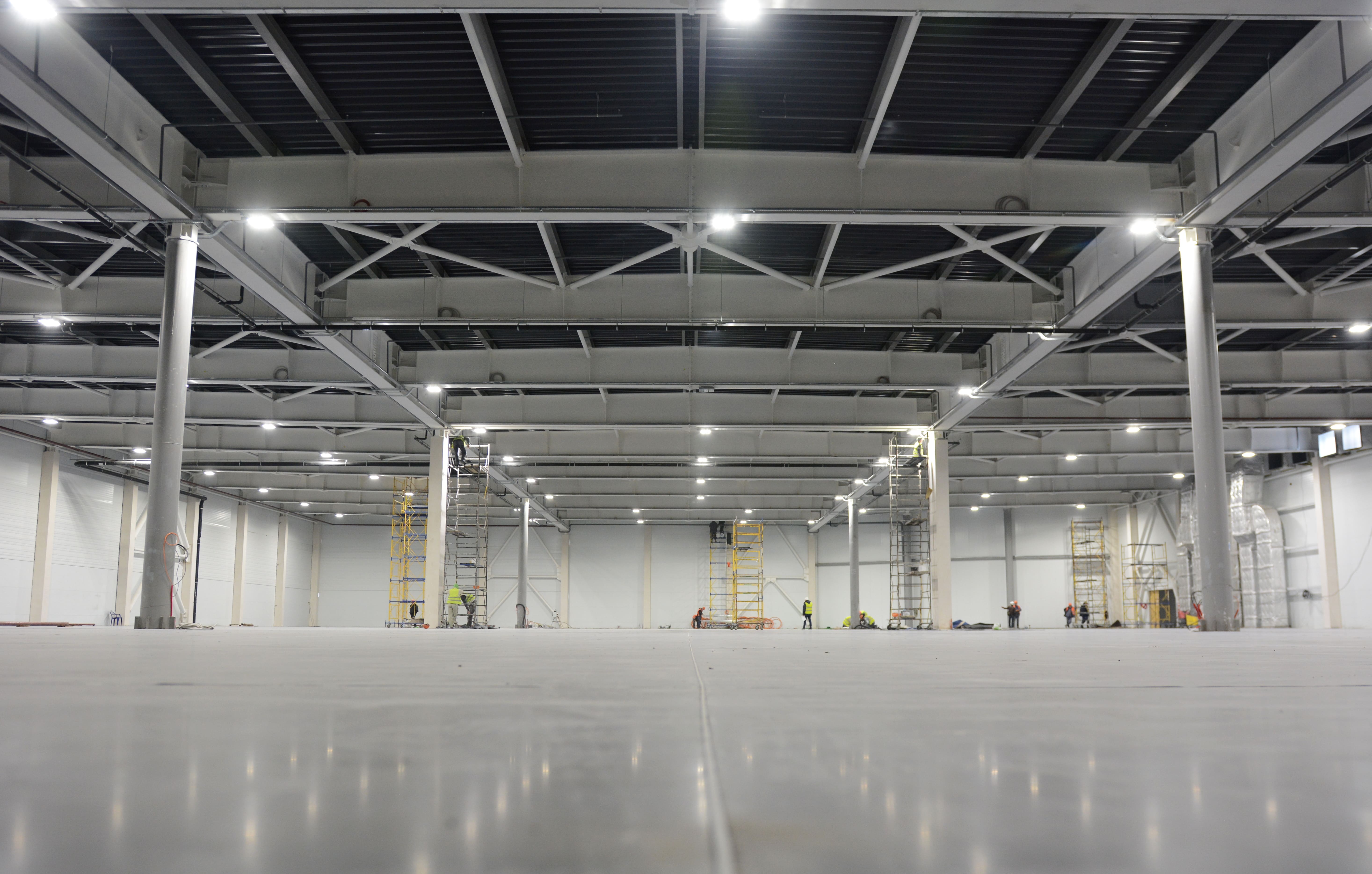

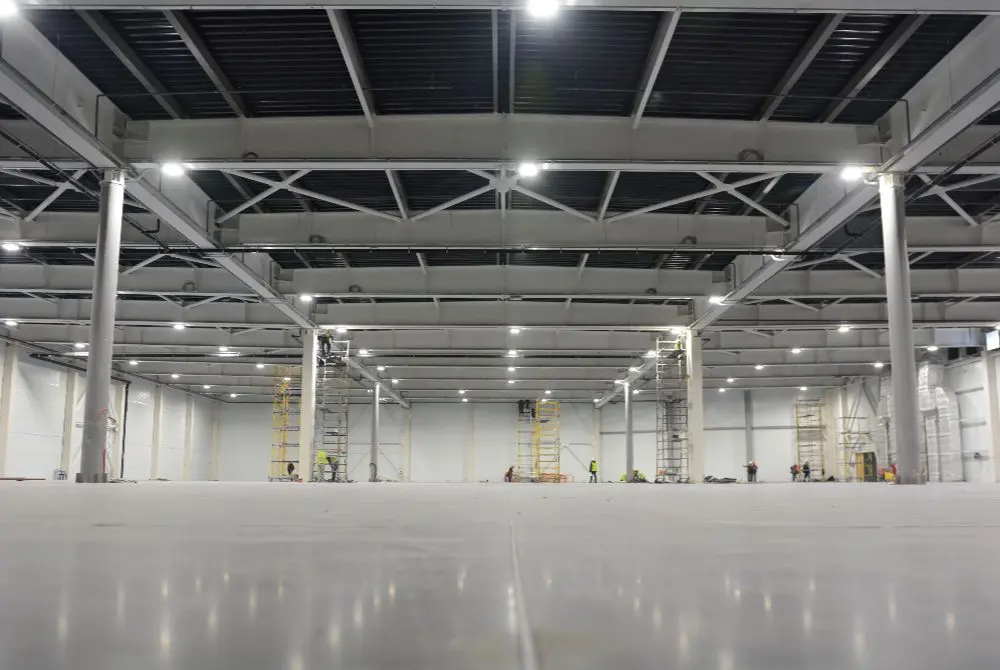

High Bay Lights

The high bay lighting series emphasizes high efficiency, heat resistance, and advanced thermal dissipation, ideal for warehouses, factories, and high-ceiling environments. With light efficiency up to 200 lm/W and options for reflectors, lenses, sensors, and mounting types, it provides bright, stable, and energy-saving illumination with reduced maintenance.

Outdoor

OEM/ODM Services

From core components to finished products, we are your one-stop lighting solutions partner. We integrate every key stage of the LED lighting supply chain—from LED packaging to final product development—providing seamless customized services that ensure maximum quality and efficiency.

LED Components

High-brightness, high-efficacy LEDs combined with optimized PCBA design lay the foundation for superior product performance.

Optical & Thermal Design

We offer a wide range of optical distribution options for precise lighting control, paired with efficient thermal structures to ensure long-lasting stability and consistent performance.

Driver & Circuit Integration

We adopt precisely matched constant-current drivers and optimized circuit designs to ensure safe and stable operation while maximizing overall energy efficiency.

Complete Solution

With strong vertical integration, we flexibly deliver customized lighting solutions tailored to your needs, accelerating your time-to-market.

Why Choose Edison?

25 Years of Technical Expertise

With more than 25 years of professional LED packaging experience, our technical capabilities provide reliable support to ensure superior and stable product performance.

One-Stop Integrated Services

Our full supply chain integration—from components to finished products—simplifies your procurement process, reduces development costs, and shortens lead times.

High Customization Flexibility

We understand the uniqueness of every project and offer highly customized service from design to manufacturing, ensuring your concepts are realized perfectly.

Strict Quality Assurance

We maintain rigorous quality control processes at every stage—from incoming materials to final shipment—to ensure that every delivered product meets the highest standards.

OutdoorProduct

Part No. Power (W) Flux (lm) Efficiency (lm/W) CCT (K) CRI (Ra) Beam Angle (°) Input voltage (V) Power Factor Surge Protection Dimmable IP IK Electric class
SG1 40W SG1 40W
40 6600 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SG1 60W SG1 60W
60 9900 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SG2 80W SG2 80W
80 13200 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SG2 100W SG2 100W
100 16500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL1 40W SL1 40W
40 6600 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL1 60W SL1 60W
60 9900 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL2 80W SL2 80W
80 13200 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL2 100W SL2 100W
100 16500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL4 150W SL4 150W
150 24750 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL4 180W SL4 180W
180 29700 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL6 240W SL6 240W
240 39600 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SL6 300W SL6 300W
300 49500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK09 CLASS I or CLASS II
SUB1 40W SUB1 40W
40 6600 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK10 CLASS I or CLASS II
SUB1 70W SUB1 70W
70 11550 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK10 CLASS I or CLASS II
SUB2 80W SUB2 80W
80 13200 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK10 CLASS I or CLASS II
SUB2 100W SUB2 100W
100 16500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK10 CLASS I or CLASS II
SUB2 120W SUB2 120W
120 19800 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK10 CLASS I or CLASS II
SP1 30W SP1 30W
30 5400 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP1 40W SP1 40W
40 7200 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP2 50W SP2 50W
50 9000 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP2 60W SP2 60W
60 10800 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ≥0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP3 100W SP3 100W
100 18000 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP3 120W SP3 120W
120 21600 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP4 150W SP4 150W
150 27000 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SP4 200W SP4 200W
200 36000 180 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type II AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SF1 50W SF1 50W
50 8250 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
SF2 100W SF2 100W
100 16500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 Type I,Type II , Type III,Type IV,Type V AC100-240V /220-240V 50-60Hz ＞0.95 SPD 10KV/20KV is optional 0-10V, PWM, Timer dimming（Optional） IP66 IK08 CLASS I or CLASS II
Part No. Power (W) Flux (lm) Efficiency (lm/W) CCT (K) CRI (Ra) Beam Angle (°) Input voltage (V) Power Factor Surge Protection Dimmable IP IK Electric class
FL2 50W FL2 50W
50 7500 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 0-10V,PWM,Time dimming(Optional) IP66 IK08 ClassI
FL2 100W FL2 100W
100 15000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:11KV 0-11V,PWM,Time dimming(Optional) IP66 IK08 ClassI
FL4 150W FL4 150W
150 22500 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:12KV 0-12V,PWM,Time dimming(Optional) IP66 IK08 ClassI
FL4 200W FL4 200W
200 30000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:13KV 0-13V,PWM,Time dimming(Optional) IP66 IK08 ClassI
FH1 250W FH1 250W
250 37500 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:14KV / IP66 IK08 ClassI
FH2 500W FH2 500W
500 75000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:15KV IP66 IK08 ClassI
FH3 750W FH3 750W
750 112500 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:16KV IP66 IK08 ClassI
FH4 1000W FH4 1000W
1000 150000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 13/30/60/90/Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:17KV IP66 IK08 ClassI
FR1 30W FR1 30W
30 4800 160 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 60°/220° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:6KV , L/N-G:15KV / IP66 IK07 ClassI
FR2 100W FR2 100W
100 16000 160 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:6KV , L/N-G:15KV / IP66 IK07 ClassI
FU1 500W FU1 500W
500 82500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 25°, 45°,60°,90°，120°,Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:10KV , L/N-G:10KV 0-10V, PWM, Timer dimming（Optional）,DALI-2.0,DMX-RDM IP66 IK09 ClassI
FU2 1000W FU2 1000W
1000 165000 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 25°, 45°,60°,90°，120°,Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:10KV , L/N-G:10KV 0-10V, PWM, Timer dimming（Optional）,DALI-2.0,DMX-RDM IP66 IK09 ClassI
FU3 1500W FU3 1500W
1500 247500 165 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 25°, 45°,60°,90°，120°,Asymmetric AC100-240V /220-240V 50-60Hz ＞0.95 L-N:10KV , L/N-G:10KV 0-10V, PWM, Timer dimming（Optional）,DALI-2.0,DMX-RDM IP66 IK09 ClassI
Part No. Power (W) Flux (lm) Efficiency (lm/W) CCT (K) CRI (Ra) Beam Angle (°) Input voltage (V) Power Factor Surge Protection Dimmable IP IK Electric class
HL2 100W HL2 100W
100 15000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:4KV , L/N-G:6KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HL2 150W HL2 150W
150 22500 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:4KV , L/N-G:6KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HL4 200W HL4 200W
200 30000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:4KV , L/N-G:6KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HB1 100W HB1 100W
100 14000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° 60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HB2 150W HB2 150W
150 21000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° 60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HB3 200W HB3 200W
200 28000 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° 60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HB3 240W HB3 240W
240 33600 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 90° 60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP65 IK08 ClassI
HM1 80W HM1 80W
80 11200 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 20°, 30°, 50°, 90°, 120°, 20x60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
HM2 160W HM2 160W
160 22400 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 20°, 30°, 50°, 90°, 120°, 20x60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
HM3 240W HM3 240W
240 33600 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 20°, 30°, 50°, 90°, 120°, 20x60°* AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
HM4 320W HM4 320W
320 44800 150 1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K ≥70 20°, 30°, 50°, 90°, 120°, 20x60° AC100-240V /220-240V 50-60Hz ＞0.95 L-N:5KV , L/N-G:10KV 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
HH3 240W HH3 240W
240 840 3.5 660nm 450nm 5000K / 120° AC100-240V /220-240V/277-480V 50-60Hz ＞0.95 / 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
HH4 320W HH4 320W
320 1120 3.5 660nm 450nm 5000K / AC100-240V /220-240V/277-480V 50-60Hz ＞0.95 / 1-10V，PWM， Timer dimming（optional） IP66 IK08 ClassI
