Floodlight
Floodlight

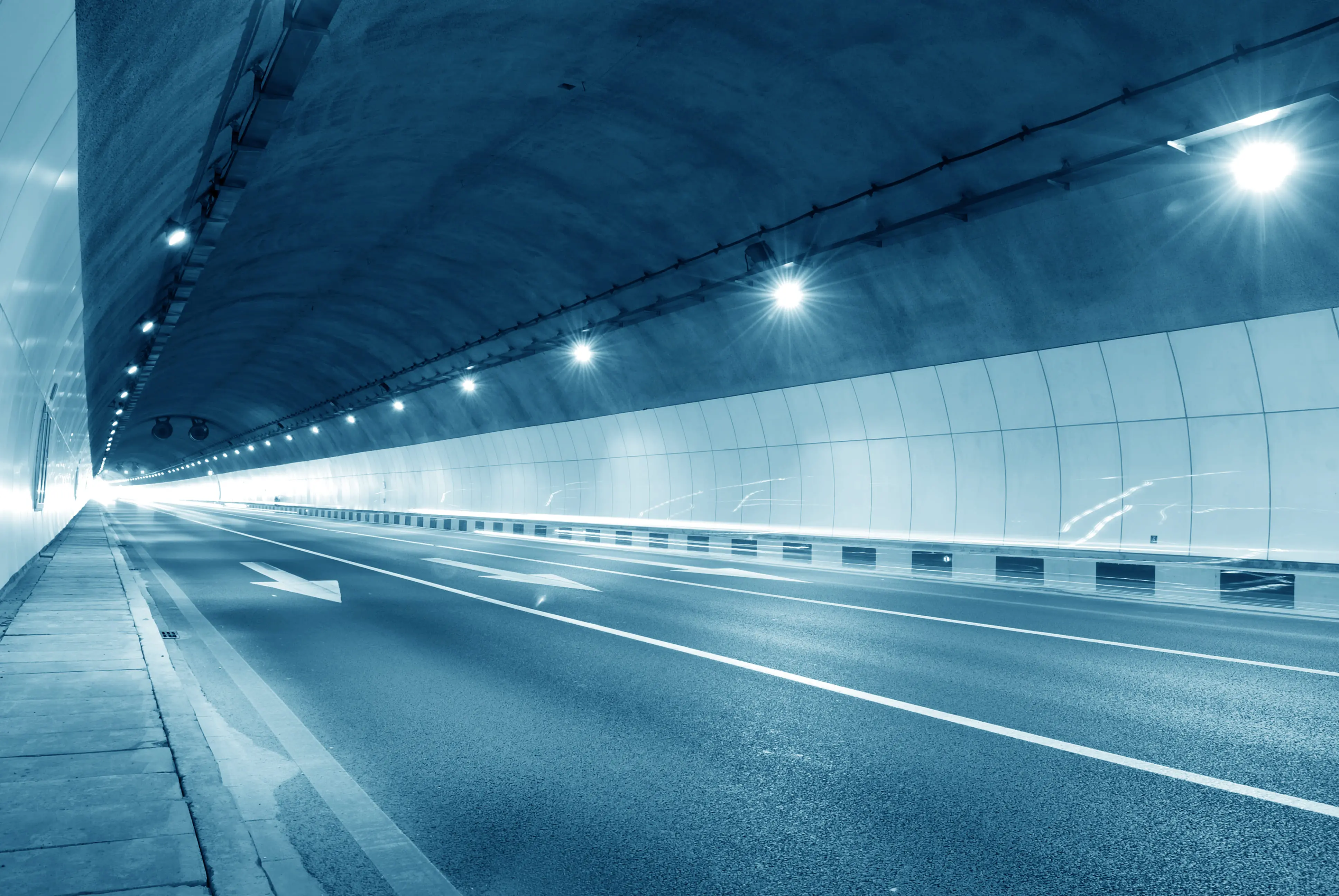

The FL Series LED floodlight delivers highly efficient and reliable performance, with flexible options for optics, power, dimming control, accessories, and mounting. Engineered with IK09 and IP66 protection for long-term reliability, the FL Series also features tempered glass for easy maintenance and cleaning. For enhanced control and adaptability, the FL Series can be optionally equipped with a NEMA or Zhaga socket, enabling seamless integration with a wide range of connected lighting systems.

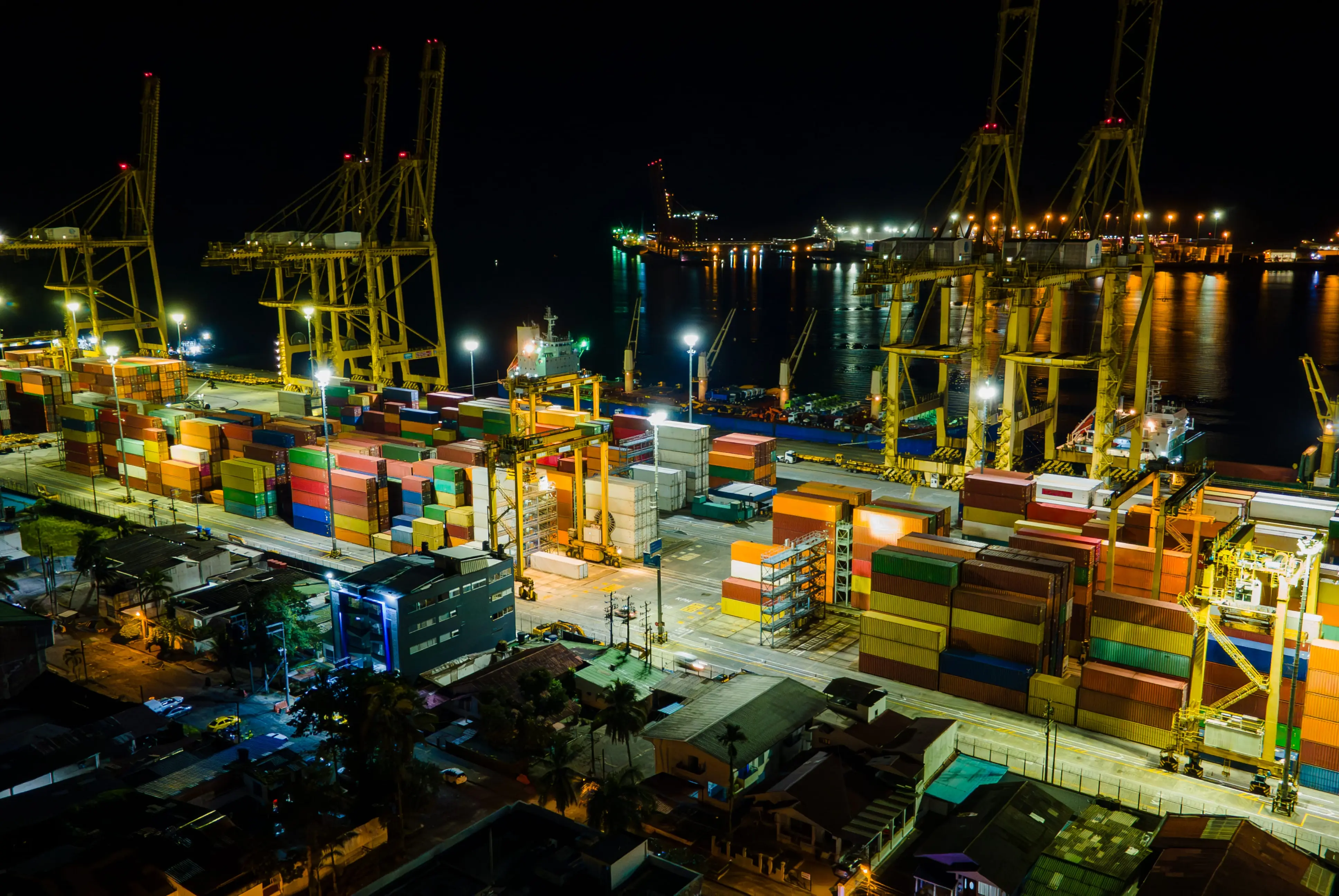

The compact FR Series delivers robust and reliable lighting for challenging environments. Featuring IP66/IK08 protection and a 60° / 150° beam angle, the FR Series is engineered with high corrosion resistance (C5M) making it ideal for demanding port, terminal, and shipboard applications.

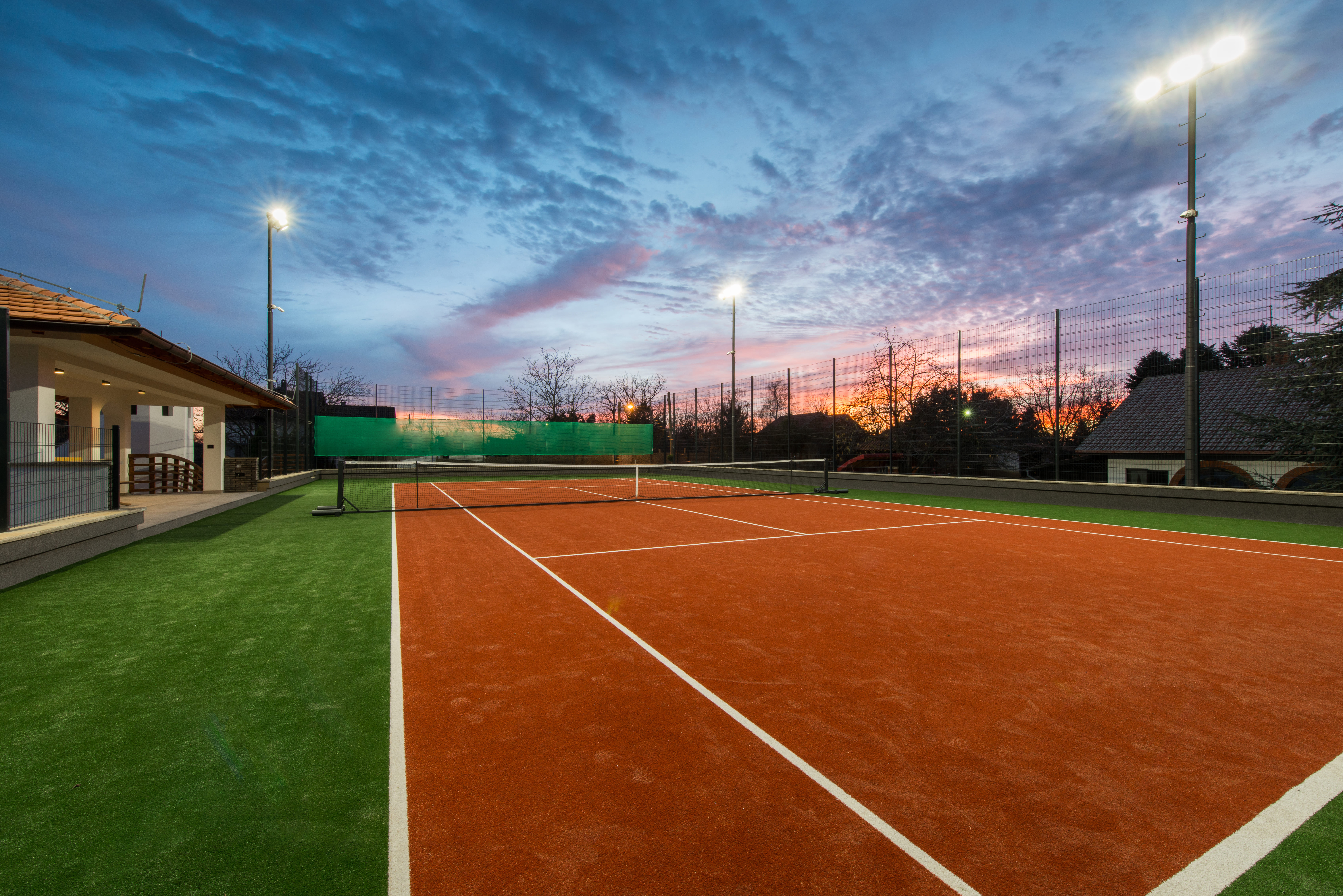

The FH Series floodlight features a modular design, making it ideally suited for a wide range of applications, including sports, construction, and area lighting. Its robust mechanical structure and long service life ensure lasting performance, while its high efficiency and optimized optical design deliver significant energy savings.

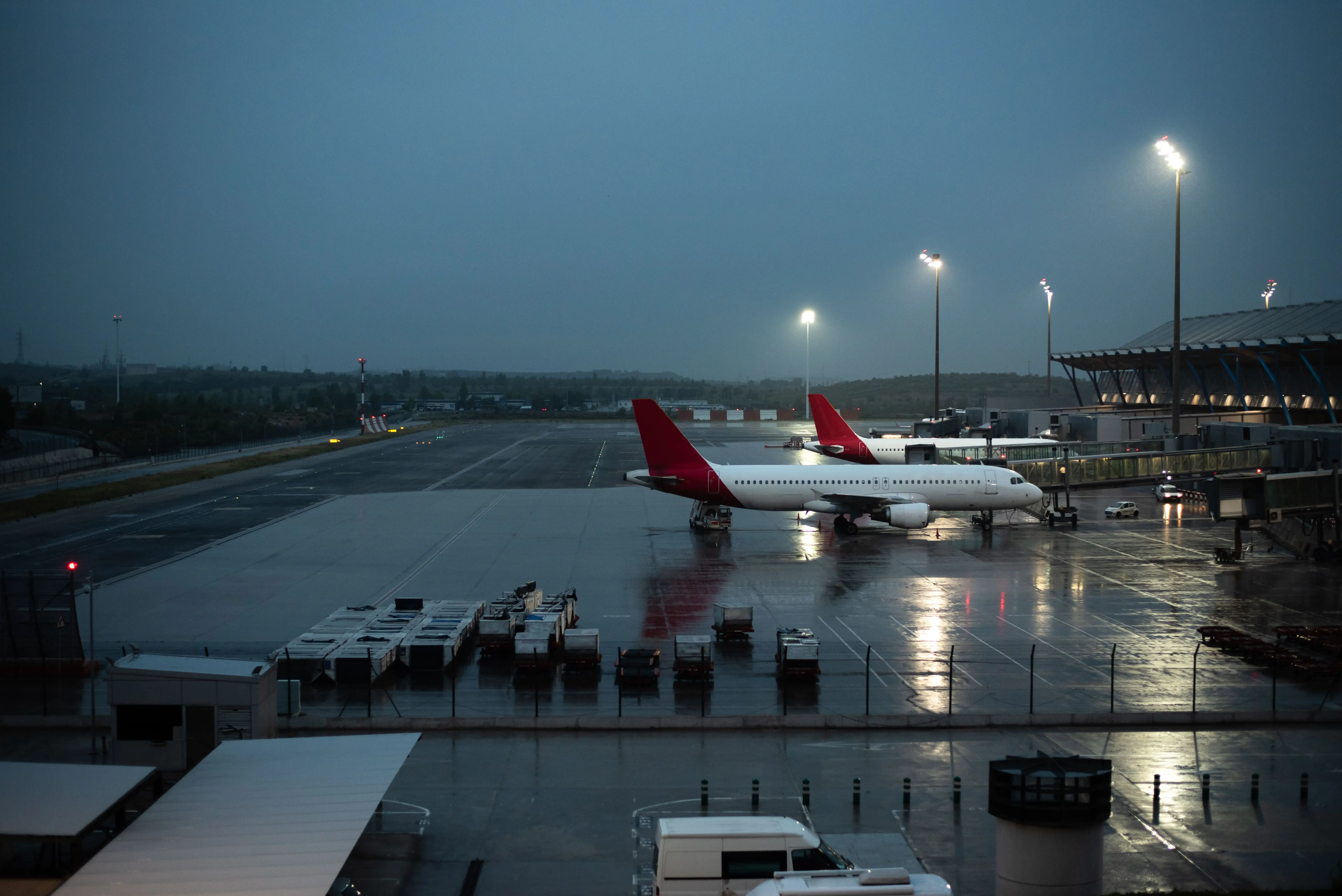

The FU series offers the perfect blend of versatility and durability for demanding wide-area applications. With multiple sizes, light distributions , CCTs, and housing colors available, this flexible solution can be tailored to any environment. Its robust structure (IP66/IK09) ensures optional heat dissipation for a long service life (exceeding 100,000 hours at L80/B10), making it a reliable choice for stadiums, port terminals, and airports.
FloodlightProduct
| Part No. | Power (W) | Flux (lm) | Efficiency (lm/W) | CCT (K) | CRI (Ra) | Beam Angle (°) | Input voltage (V) | Power Factor | Surge Protection | Dimmable | IP | IK | Electric class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50
|
7500
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:10KV
|
0-10V,PWM,Time dimming(Optional)
|
IP66
|
IK08
|
ClassI
|
|
|
100
|
15000
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:11KV
|
0-11V,PWM,Time dimming(Optional)
|
IP66
|
IK08
|
ClassI
|
|
|
150
|
22500
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:12KV
|
0-12V,PWM,Time dimming(Optional)
|
IP66
|
IK08
|
ClassI
|
|
|
200
|
30000
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:13KV
|
0-13V,PWM,Time dimming(Optional)
|
IP66
|
IK08
|
ClassI
|
|
|
250
|
37500
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:14KV
|
/
|
IP66
|
IK08
|
ClassI
|
|
|
500
|
75000
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:15KV
|
/ |
IP66
|
IK08
|
ClassI
|
|
|
750
|
112500
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:16KV
|
/ |
IP66
|
IK08
|
ClassI
|
|
|
1000
|
150000
|
150
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
13/30/60/90/Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:5KV , L/N-G:17KV
|
/ |
IP66
|
IK08
|
ClassI
|
|
|
30
|
4800
|
160
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
60°/220°
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:6KV , L/N-G:15KV
|
/
|
IP66
|
IK07
|
ClassI
|
|
|
100
|
16000
|
160
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
60°
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:6KV , L/N-G:15KV
|
/
|
IP66
|
IK07
|
ClassI
|
|
|
500
|
82500
|
165
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
25°, 45°,60°,90°,120°,Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:10KV , L/N-G:10KV
|
0-10V, PWM, Timer dimming(Optional),DALI-2.0,DMX-RDM
|
IP66
|
IK09
|
ClassI
|
|
|
1000
|
165000
|
165
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
25°, 45°,60°,90°,120°,Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:10KV , L/N-G:10KV
|
0-10V, PWM, Timer dimming(Optional),DALI-2.0,DMX-RDM
|
IP66
|
IK09
|
ClassI
|
|
|
1500
|
247500
|
165
|
1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K
|
≥70
|
25°, 45°,60°,90°,120°,Asymmetric
|
AC100-240V /220-240V 50-60Hz
|
>0.95
|
L-N:10KV , L/N-G:10KV
|
0-10V, PWM, Timer dimming(Optional),DALI-2.0,DMX-RDM
|
IP66
|
IK09
|
ClassI
|
