High Bay Lights

HL Series

HB Series

HM Series

HH Series

The HL Series is a highly efficient and reliable LED high bay light. With system efficiency of is up to 200lm/W enable by the state-of-the-art LED technology. It delivers outstanding performance.The series offers flexible options in optics, power,control, accessories and mounting. Designed to enhance lighting ambiance in industrial application, the HL Series is the smart choice for any new or retrofit installations.

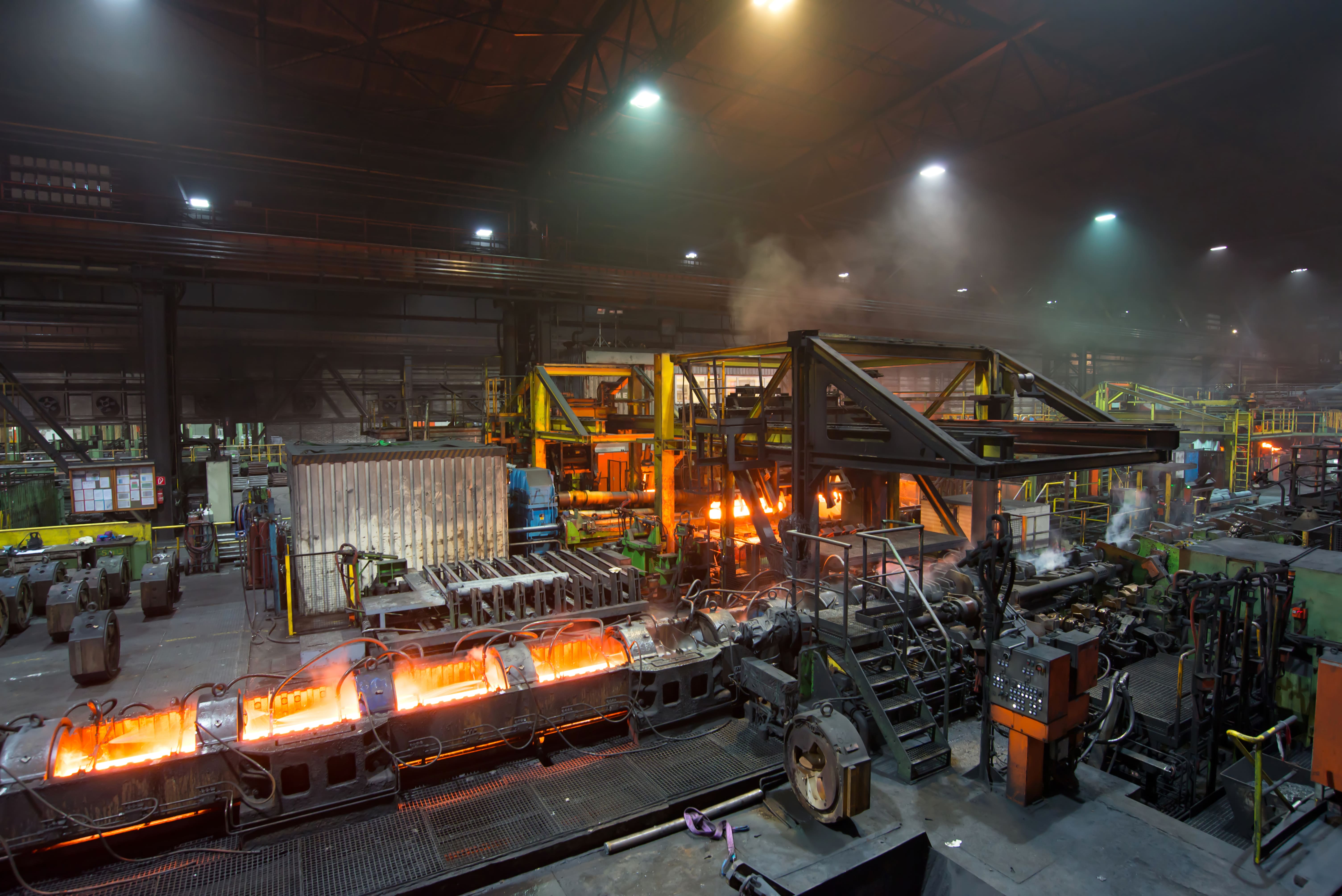

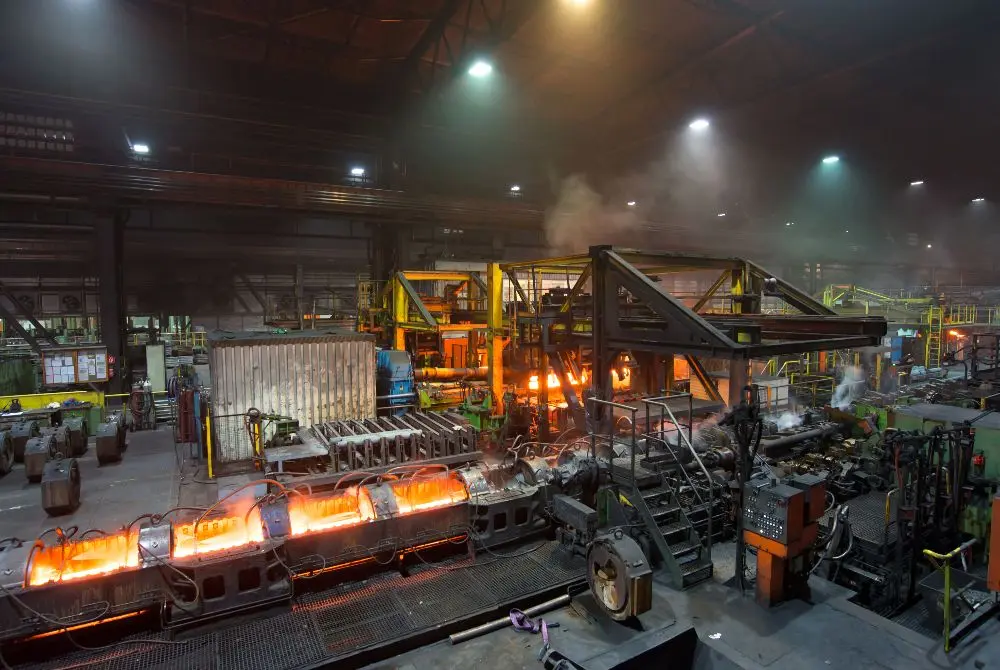

The HB Series delivers a truly versatile and future-ready lighting solution. Engineered for durability and reliability it features die-cast aluminum housing,IK08 impact-resistant tempered glass,and advanced heat sink design to ensure long-lasting performance in demanding outdoor environments. With integrated sockets,the HB series offers extensive smart control options,including 0-10V,DALI ,and customizable dimming profiles-making it adaptable to todayʼs needs and tomorrowʼs smart city requirements.

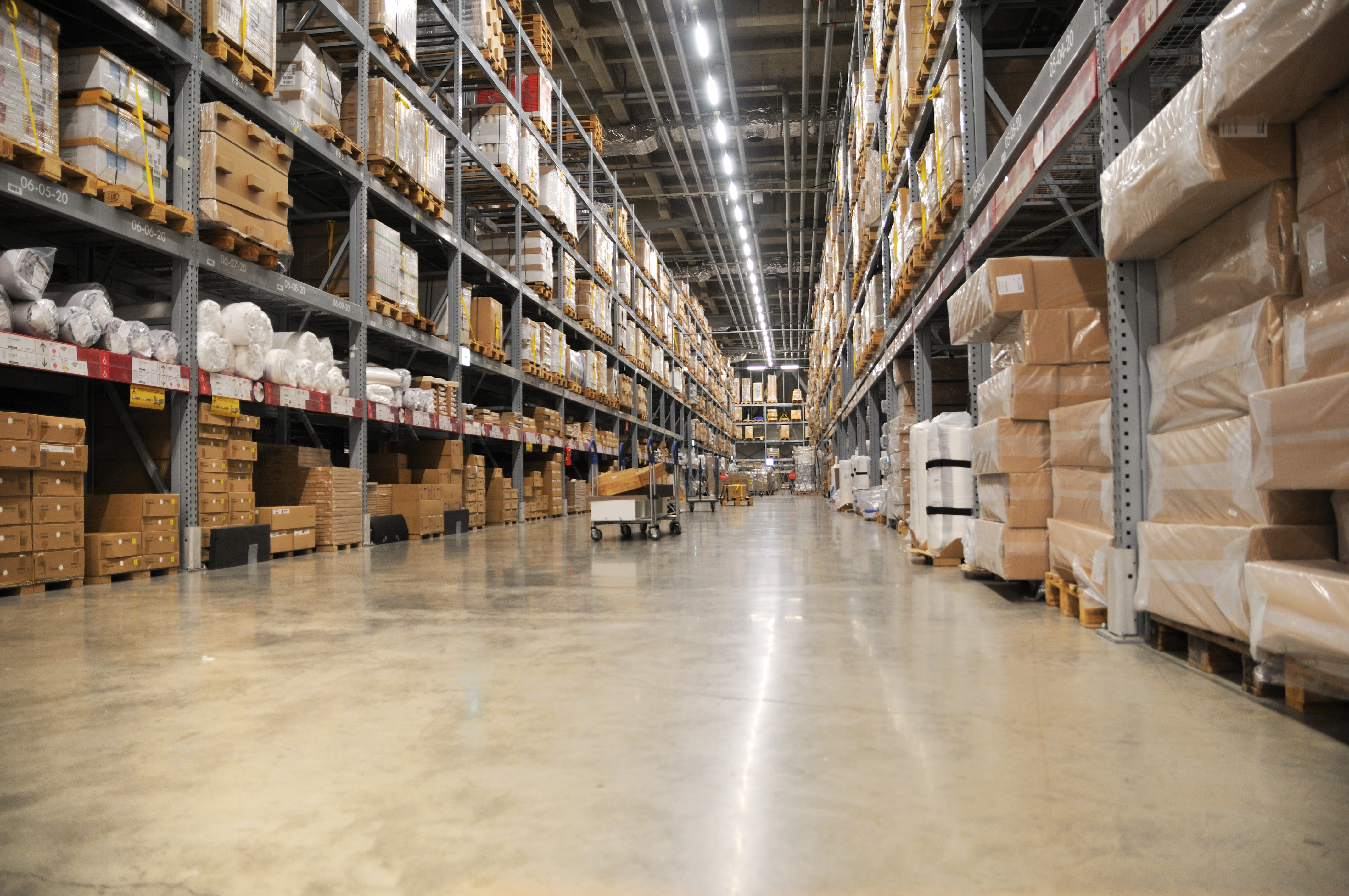

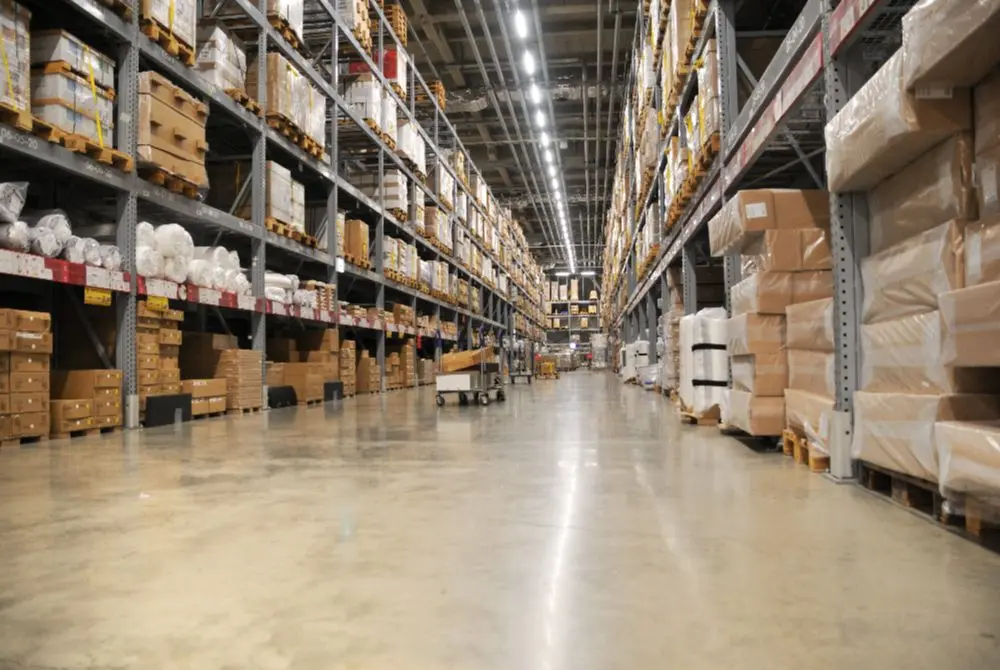

The HM Series is a high-performance linear light developed by Edison, offering adaptable lighting solutions to meet diverse needs. Its extruded aluminum alloy housing and unique longitudinal grid heat dissipation design ensure exceptional longevity. An IP66 waterproof rating further enhances reliability, making it ideal for demanding environments.

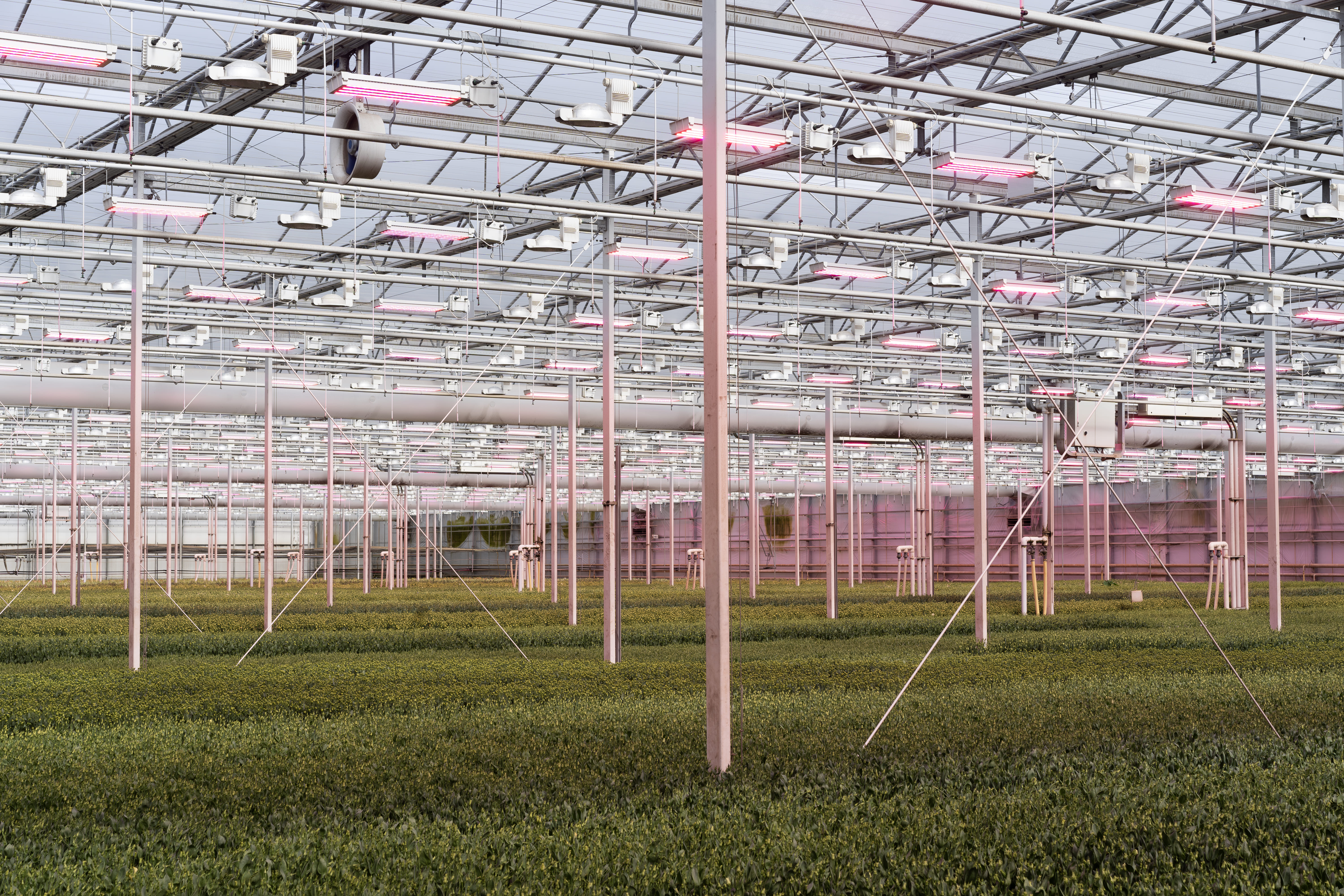

The HH Series delivers tailored horticultural solutions with robust aluminum alloy housing and unique longitudinal heat-dissipation design for an extended lifespan.With IP66 waterproof protection and advanced technology,it achieves industry leading PPF out put performance ensuring reliable,long-term cultivation.

High Bay Lights

High Bay LightsProduct

Tags:

Part No.	Power (W)	Flux (lm)	Efficiency (lm/W)	CCT (K)	CRI (Ra)	Beam Angle (°)	Input voltage (V)	Power Factor	Surge Protection	Dimmable	IP	IK	Electric class
HL2 100W	100	15000	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:4KV , L/N-G:6KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HL2 150W	150	22500	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:4KV , L/N-G:6KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HL4 200W	200	30000	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:4KV , L/N-G:6KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HB1 100W	100	14000	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90° 60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HB2 150W	150	21000	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90° 60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HB3 200W	200	28000	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90° 60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HB3 240W	240	33600	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	90° 60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP65	IK08	ClassI
HM1 80W	80	11200	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	20°, 30°, 50°, 90°, 120°, 20x60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI
HM2 160W	160	22400	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	20°, 30°, 50°, 90°, 120°, 20x60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI
HM3 240W	240	33600	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	20°, 30°, 50°, 90°, 120°, 20x60°*	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI
HM4 320W	320	44800	150	1800K/ 2700K/ 3000K/3500K/4000K/5000K/5700K/6500K	≥70	20°, 30°, 50°, 90°, 120°, 20x60°	AC100-240V /220-240V 50-60Hz	＞0.95	L-N:5KV , L/N-G:10KV	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI
HH3 240W	240	840	3.5	660nm 450nm 5000K	/	120°	AC100-240V /220-240V/277-480V 50-60Hz	＞0.95	/	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI
HH4 320W	320	1120	3.5	660nm 450nm 5000K	/	/	AC100-240V /220-240V/277-480V 50-60Hz	＞0.95	/	1-10V，PWM， Timer dimming（optional）	IP66	IK08	ClassI

High Bay Lights

High Bay Lights

High Bay LightsProduct

HL2 100W

HL2 150W

HL4 200W

HB1 100W

HB2 150W

HB3 200W

HB3 240W

HM1 80W

HM2 160W

HM3 240W

HM4 320W

HH3 240W

HH4 320W
